Dimensions
40 HP
30 mm deep
Current Draw
200 mA +12V
0 mA -12V
0 mA 5V
Price

Available as an assembled Module and as a DIY project.

This Module is discontinued.

Indexed Quad Sequencer and Sequencer Controller Module combined with a single black panel

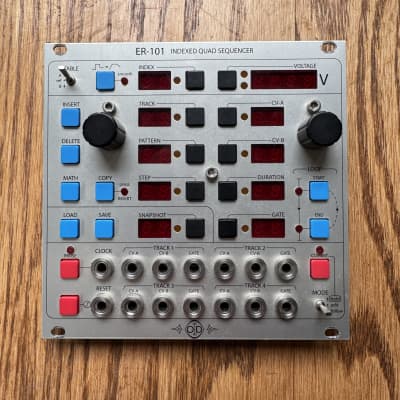

The ER-101 is a real-time composition, sequencing and automation environment, all in 26HP. It enables you to compose sequences of thousands of steps with variable duration, variable gate length, arbitrary scales, smooth transitions, save/recall device state and much more.

The ER-102 Sequencer Controller is an expander for the ER-101 Indexed Quad Sequencer.

Preliminary Panel Layout

There are 5 main sections on the ER-102: Sequencer Controller.

Memory: basically the uSD card

Cues: a cue is a (saved) start step (i.e. the cue's origin) along with its own loop points. The cues are CV-select-able and gate-activated.

Groups: a group is a (saved) arbitrary selection of steps and patterns upon which you will be able to operate all at once.

Control Vectors: each and every step can be configured separately to respond in its own unique way to each of the 3 input CVs. You do this by setting the sensitivity of each of a step's parameters to changes in the 3 input CVs.

Recording: this section implements step recording, real-time recording, and CV quantization.

http://www.orthogonaldevices.com/er-101
http://www.orthogonaldevices.com/er-102
