Dimensions
16 HP
26 mm deep
Current Draw
135 mA +12V
35 mA -12V
0 mA 5V
Price
$475 Price in €

This Module is currently available.

Specs are approved by the manufacturer

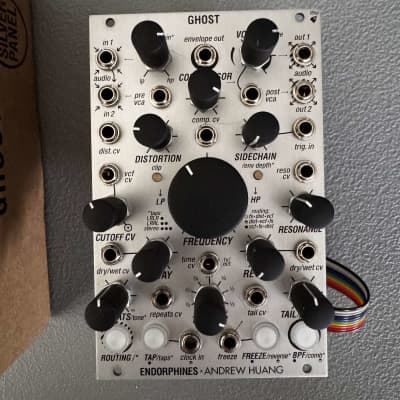

ENDORPHIN.ES X ANDREW HUANG

24 BIT I/O, BIT-CRUSHER AND SAMPLE-RATE REDUCER WITH THE NEW V3 FIRMWARE

In collaboration with ANDREW HUANG, based on his modern music production techniques ENDORPHIN.ES developed a creative audio processor with multiple blocks that can be moved around in order to achieve different flavors for sound design.

  • audio processing unit without fixed structure: intuitively create astonishing and ephemeral timbres: from atmospheric rumbles to heavy or distorted textures
  • creative stereo effect processor with delay, reverb, filter and distortion with quickly explorable routing chain with single button press
  • new generation ARM Cortex - M7 processor with 96 kHz 32 bit internal processing
  • lush hall with shimmer and freeze and whooshing reverse reverbs with tone control and pre-delay
  • sidechain audio ducking with trigger input and one knob single band compressor
  • zero-delay feedback state-variable filters: bipolar low-pass / high-pass, band-pass and alternative comb filter with resonator
  • tap delay with external clock and clock divider, 1v/oct time control for Karplus-Strong, looper, tone control, various taps settings with up to 2,5 sec. maximum delay time
  • 8x oversampled distortion algorithm
  • pre- and post- VCA controls, input Tone and output Volume/Mix controls with extra gain/drive reserve

https://www.endorphin.es/modules/p/ghost


Ø 5.00 (2 Votes) Average Rating
submitted May 3rd 2022, 14:21 by Endorphines | last Change Mar 16th 2023, 10:00 by Endorphines
