Available as an assembled Pedal and as a DIY project.
This Pedal is currently available.
Lo-fi sound manipulation
Whether you’re more into Xenakis or Arca, granular synthesis has helped a plethora of artists express themselves in unconventional ways. Wanna join them? That’s where microGranny comes into play.

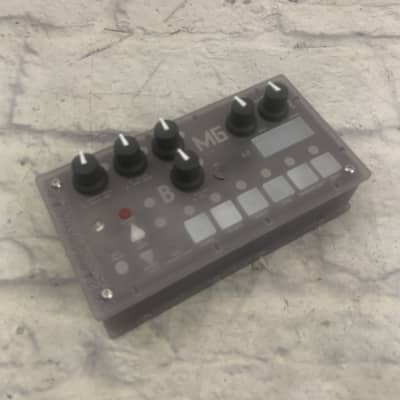

Our monophonic granular sampler packs grand lo-fi sound into a small body. The 2nd generation of Bastl's instant classic reads WAV samples from a microSD card and applies granular algorithms to them. With a vast collection of samples at your hands, you can do much more than simply trigger each one in turn. You can adjust start, end, sample rate (tuned or free run), crush, and envelope (attack release).
Features
monophonic mono sampler
microSD card (storing + recording samples, storing presets)
6 sounds with full adjustments storable in a preset at once
60 presets in 10 banks (6 preset per bank), stored as .txt files on the microSD card
wav sample playback from microSD card (mono, 22050 Hz, 8 or 16 bit, two letter file name)
8-bit 22050Hz WAV recording via line input or onboard microphone
hold button
sample rate (tuned or free run)
crush
start, end position with repeat, instant loop
granular settings: grain size and shift speed (positive or negative)
amplitude envelope attack and release
MIDI Input – responds to note, cc, and clock (synchronize loop and grains)
MIDI side chain envelope restart
copy, paste
input & output volume knob
power switch – plug/battery
hackable – Arduino based
Technical details
dimensions: 140 x 75 x 55 mm
powered by 9V battery, 9V DC center positive power supply or side pins
