Dimensions
1 Slot
Price
$775 Price in €

This Module is currently available.

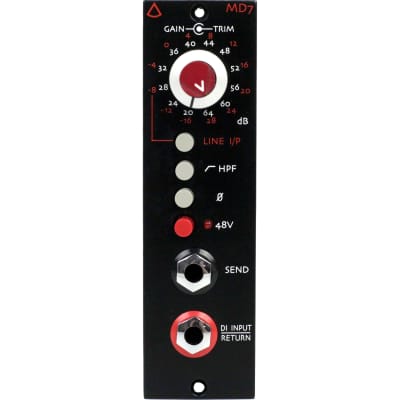

Opamp based Mic Preamp

  • Standard 500 series modular size 1.5″ x 5.25″
  • Gain range from 0dB – 64dB in 4dB steps for recall-ability
  • Input Trim control for fine control of gain
  • TransDrive™ circuitry for slight saturation at peaks
  • Utilizes the discrete 1122 op-amp known for depth and resolution
  • All discrete design with Class A buffer amplifier
  • Wide bandwidth, high headroom, very low noise
  • NO PAD, NO IC’s, and NO Surface Mount Components
  • Line Input to interface with DAW’s
  • Phase reverse, and filtered 48V phantom power
  • High Pass Filter using a gentle slope for natural bass roll-off (-3dB @ 80Hz)
  • 10 Meg-ohm high impedance DI input great for all instrument pickups
  • SEND feature to run signal through stomp boxes for variety of effects
  • Perfect for using as a re-amplification device

http://avedisaudio.com/md7/
