1 U
Current Draw
80 mA +15V
30 mA -15V
? mA 5V
$300 Price in €

This Module is discontinued.

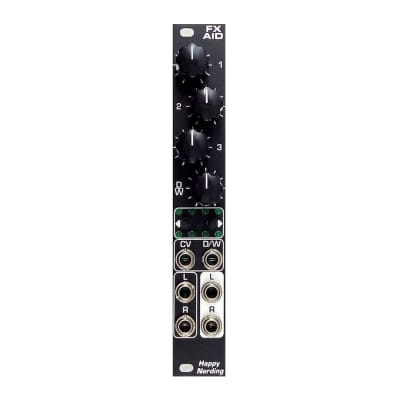

multi fx

32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Separate modulation inputs for all three effect parameters plus Sample Rate Reducer (SRR) input - changes internal clock. Four user storable presets – stores selected program and all three controls. Spin FV-1 based.
The last used effect, and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long “wav” file of line level amplitude to SRR input.
Reflashing mode: hold both buttons for 10 sec.
By default it runs on 32.77 kHz and, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz via SRR input.

This is the HN FX AID XL module ported to the MU 5U format
