This Module is currently available.
Specs are approved by the manufacturerSub oscillator, frequency divider and sequence generator

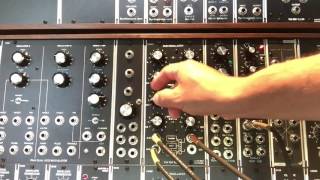

The CGS01 Sub Oscillator / Harmonic Sequencer designed by Cat Girl Synthesizers and built by Lower West Side Studio has a multitude of uses.
First, as its name suggests, it provides deep, resonant sub-oscillation to VCO input. It is actually a two channel sub-oscillator whose channels can be used independently or can be driven by the same oscillator but set to different intervals.
Running an LFO input into both channels then feeding the output into the 1V/Oct input of an oscillator will produce a pattern based sequence. The output can also be fed to a Quantizer first to create a musically melodic patch.
The CGS01 Sub Oscillator / Harmonic Sequencer comes in a 1U width with 19mm knobs controlling 8 potentiometers. These potentiometers function as each channel’s mixers for the voltage divisions (0 / 2 / 4 / 8)
The CGS01 can also be used as a clock divider with some startling effects!
Inputs include Signal for Channels 1 & 2
Both Normal and Inverted signal are available as Output
The module operates at +/- 15V and comes with a MOTM style power connector. Included is an MOTM to Synthesizers.com power connector adapter.
