Multiples & Attenuators

FUNCTION DESCRIPTION

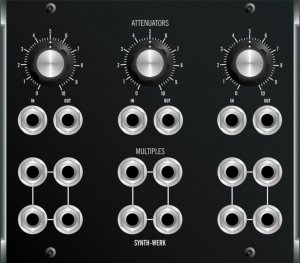

The multiple part consists of three sets of four jacks. Each set of jacks has been wired together. The multiple is a “device” which permits multiple distribution of one signal to several different places. This process is often called signal splitting. Multiples are used for many purposes; from linking two patch cords together, sending a single signal to several different modules at the same time.

The Attenuator part consists of three „passive circuits“, each made of a 25k potentiometer between input and output. The signal input to the left hand attenuator is chained to the right hand two in series. Introduction of a patch cord into middle or right hand input breaks the normalling system.

Attenuators reduce the gain or amplitude of any applied input signal, control or audio. Moving clockwise from zero gain to unity gain with input, these attenuators can be used for reducing the effect of a control upon a voltage controlled module, providing up to three variable outputs from a single source input or reducing the gain of an entire signal complex.

Half size 3 U module

http://www.synth-werk.com/content/modules

  • Module does not draw current
  • 58 mm deep
