Oktave

ACL

CV / octave shifter

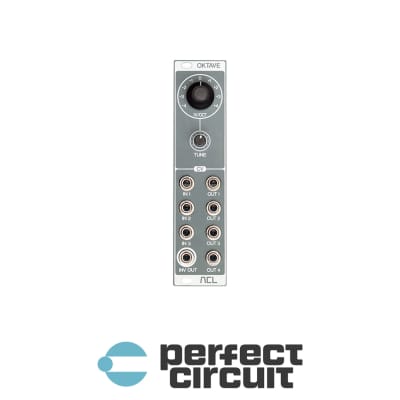

The ACL Octave is a processing module, designed for, but not limited to instant precise transposing of V/Oct CVs up or down. The module provides three high impedance inputs, one low impedance inverting output and four low impedance non inverting outputs. By the means of a high quality nine positions rotary switch, with end ones -4V and +4V, and 0V at the center, the sum of input 1, 2 and 3 is precisely transposed in steps of 1V. The overall offset of the input mix can be also finely adjusted with the Tune poentiometer within ± one fifth (7 semitones). Due to the use of a precise on-board voltage reference, precision low-tolerance resistors and low-noise/low DC-drift/Offset Operational Amplifiers, the module provides reliable octave switching and offset adjustment with minimal errors.

Features

Fine Tune for incoming CV ) +/- 1 Octave
4 Octaves switchable up and down from zero
3x CV Inputs
4x CV Outputs + 1 x Inverted Output

http://www.audiophilecircuitsleague.com/product-details/oktave.html

  • 7 mA +12V
  • 3 mA -12V
  • 0 mA 5V

This Module is currently available.

$189 Price in € submitted Nov 14th 2017, 21:39 by ACLMusicalInstruments | last Change Oct 16th 2018, 20:15 by ACLMusicalInstruments
Specs are approved by the manufacturer
