Dimensions
6 HP
25 mm deep
Current Draw
15 mA +12V
15 mA -12V
? mA 5V
Price
$119 Price in €

This Module is currently available.

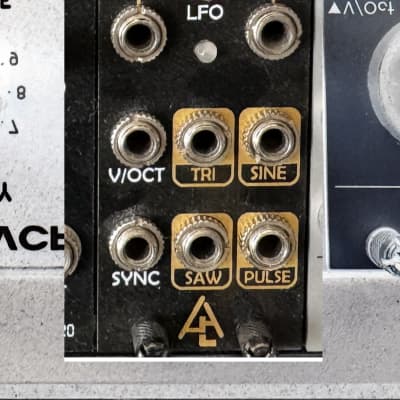

CEM3340 Based Oscillator

A triangle core oscillator that is based on the same CEM3340 chipset used in legendary synths (SH-101, Prophet 5, MemoryMoog). Offers a wide frequency range from 80s cycles up to 40kHz.
• Four waveform outputs (TRI, SAW, PULSE, SINE)
• V/OCT tracking over 5+ octaves
• Linear FM with attenuator
• Choice of hard sync or soft sync (set via jumper on back)
• PWM attenuator and input (normalled to 5V)
• LFO/VCO switch will change from audio rate to LFO rate (choice of two LFO timings, 8 sec or 80 sec, via jumper on the back)
