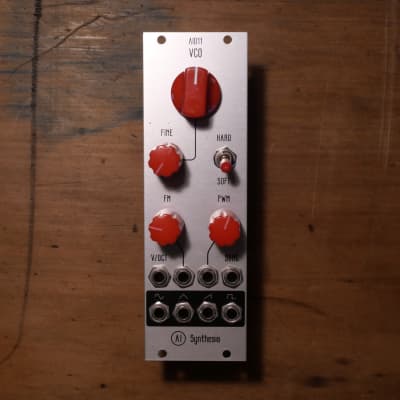

AI011 Analog VCO

Buffered 3340 Based VCO you can buy or build

The AI011 Analog VCO is a robust and stable analog Eurorack VCO. Using the legendary curtis 3340 IC, the Oscillator provides buffered Triangle, Square, and Ramp waveforms, as well as a triangle to sine wave shaper to provide a sine wave output.

The Eurorack VCO features both Coarse and Fine tune knobs for easy tuning.

Pulse Width Modulation is normalled to the PWM input jack, so PWM is controlled with the PWM knob when no CV is present, and when a jack is inserted, the knob serves as an attenuator.

Volt per octave and FM input jacks are present, with an attenuator for FM modulation.

The VCO is capable of both hard and soft sync.

An expander jack is present at the rear of the module for use with future AI modules.

Kits include all parts needed to build and mount the AI011 Eurorack VCO:

Hi Quality Aluminum Panel
Mounting Screws
Potentiometers
Jacks and Nuts
Power cable

https://aisynthesis.com/product/ai011-voltage-controlled-oscillator

  • 15 mA +12V
  • 15 mA -12V
  • ? mA 5V
  • 35 mm deep

Available as an assembled Module and as a DIY project.

This Module is currently available.

$109 Price in € submitted Nov 17th, 23:19 by aisynthesis | last Change Nov 22nd, 00:32 by aisynthesis
