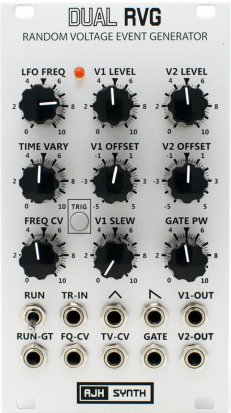

Dual RVG (Silver Panel)

Random Voltage Generator

The Dual Random Voltage Event Generator (Dual RVG) is a faithful replica of the vintage EMS Random Voltage Generator. It is an all analogue design which generates two separate random voltages that can be timed either from the internal LFO or from an external clock. However, one of the most interesting features is that varying amounts of randomisation can be added to the internal clock rate with the Time Vary control - so with this we can randomise time period in addition to voltage.

The TR-IN input allows an external clock to be used instead of the internal LFO. When the LFO is stopped two new random voltages can be generated with each press of the manual Trigger button.

We have added many useful features that were not present on the original design, including Level and Offset controls for both outputs, adjustable Slew on Output 1, control of internal LFO run / stop from an external Gate signal, control of LFO rate using an external CV, and the LFO output is brought out to the front panel as both a Sawtooth and Triangle wave and both of these waveforms are skewed as Time Vary is added to the LFO rate. We have also added a gate output that produces a gate for each internal clock pulse, and this gate length changes in proportion with the time variance. The duty cycle of the gate can also be varied from 1% to 99%.

Limited Edition

The Dual RVG will be available with either a Black (Dark Edition) or Silver front panel. Just like the original EMS RVG the circuitry uses vintage unijunction transistors for both the ramp and hold and LFO circuits, these are quite rare and we have only obtained enough UJT's to build a limited number of modules, Therefore the Dual RVG module is being released as a once only, strictly Limited Edition of 250 units worldwide.
