Dimensions
5 HP
32 mm deep
Current Draw
10 mA +12V
10 mA -12V
0 mA 5V
Price
$99 Price in €

This Module is currently available.

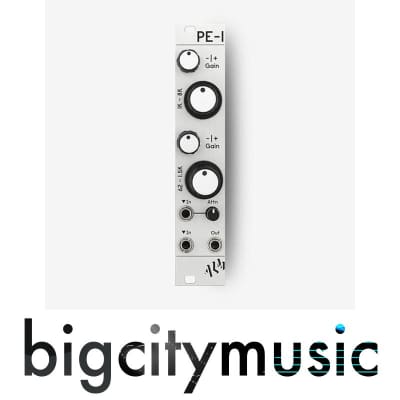

ALM016 - Dual Band Parametric EQ

‘PE-1’ is a dual band parametric EQ and simple two channel mixer. Two control sections provide a sweepable cut or boost to a selectable upper and lower frequency band. The module has two ac-coupled audio inputs, one of which has an attenuation control for basic mixing, and a single audio output.

The ‘PE-1’ is inspired by the EQ circuits used in early ‘Portastudio’ type 4 track tape mixers. Warm up a digital source, fine control a live performance, extend a mixer, tweak a feedback loop – there are many uses for this great sounding EQ.

  • Provides +/-12db of boost and cut across 2 selected frequency bands
  • Dual input with single attenuation control
  • Reverse polarity protection.
  • Skiff friendly.
  • Designed and Made in the UK.
