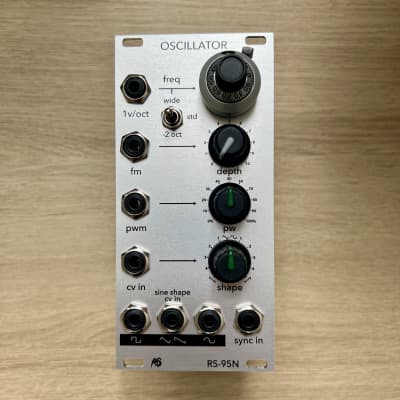

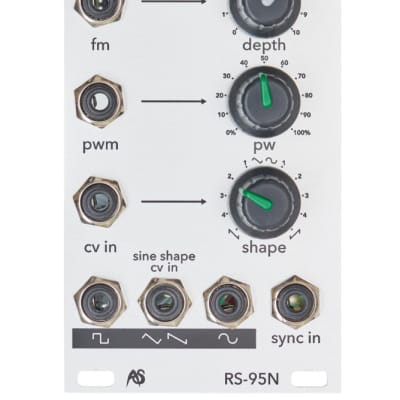

Enhanced precision VCO

This module is identical to the RS95E but lacks the high-resolution vernier potentiometer (similar to that used on the EMS VCS3 and Synthi AKS) used on the RS95E!

Enhanced precision voltage controlled oscillator high frequency stability and excellent musical tracking over a ten octave range. Accurate waveforms of sine, sawtooth, triangle, square and pulse are available as separate outputs, the waveshapes can be independently voltage controlled. a wide range mode allows the oscillator to operate in both supersonic and subsonic frequency ranges as well as in the audio frequency range. Hard sync input for classic complex lead sounds.

http://www.analoguesystems.com/

  • 65 mA +12V
  • 65 mA -12V
  • ? mA 5V
  • 42 mm deep
  • Ø 5.00 (2 Votes) Average Rating

This Module is discontinued.

12 HP Oscillator
