Dimensions
5 HP
35 mm deep
Current Draw
30 mA +12V
30 mA -12V
0 mA 5V
Price
$118 Price in €

No info about availability.

Specs are approved by the manufacturer

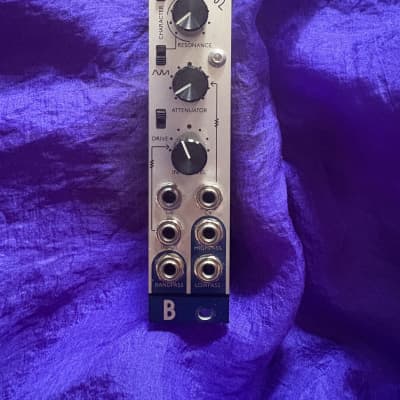

State variable filter

voltage controlled state variable filter
Cinnamon is very unique sounding filter. The presence of drive and character switches makes it multi-flavoured spice for your sound !

Features

-5HP
-voltage controlled cutoff frequency
-CV input with attenuator
-V/Oct CV input
-audio input with level control
-drive switch to overdrive input of the filter
-low pass output (2-pole)
-band pass output (1-pole)
-high pass output (2-pole)
-resonance control
-character switches to change the way resonance works (character switches might break V/Oct tracking)
-with full resonance works as oscillator (0°,90° and 180° phased sinewave at different outputs)
-character switches change the waveform when self-oscillating and also might break the V/Oct tracking

http://www.bastl-instruments.com/modular/cinnamon-2/
