Dimensions
5 HP
35 mm deep
Current Draw
30 mA +12V
5 mA -12V
0 mA 5V
Price
$101 Price in €

This Module is currently available.

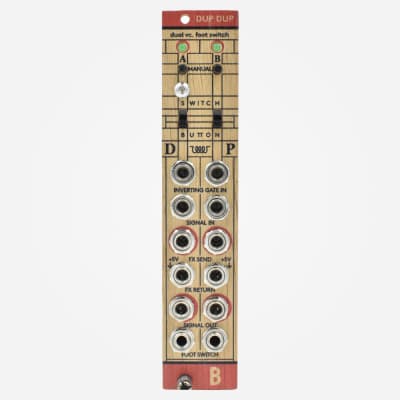

dual voltage controlled footswitch

Add stomp box type of control to your modular! Use floor switches to bypass signal processor, switch between any two signals, mute trigger sequence for your kick drum or just send a gate signal! It can be used in either momentary or switch mode! Works with any button, but with the ones we provide it also gives you visual indication on the floor. It can be also used as simple voltage controlled switch.

Features

dual voltage controlled switch
2 foot-switch inputs (including led indication on the passive foot switch)
each channel has signal IN which is buffered into the FX Send
signal OUT selects between FX Return and Signal IN
manual button to change the switch
each channel can act as momentary button or as a latch switch
gate input inverts the current state of the switch

technical details

5HP width
PTC fuse and diode protected 10pin power connector • 35mm deep
current consumption: +12V:
