Dimensions
2 HP
35 mm deep
Current Draw
5 mA +12V
5 mA -12V
0 mA 5V
Price
$74 Price in €

This Module is currently available.

Specs are approved by the manufacturer

2hp contact mic module

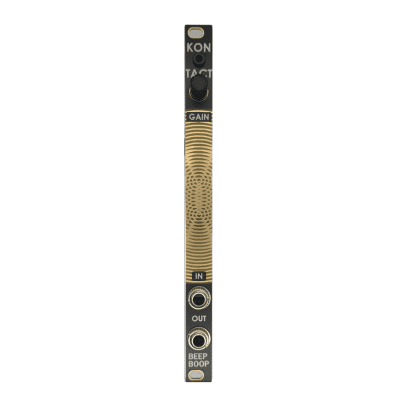

The Beepboop 2hp Kontact Mic pairs up perfectly with your Eurorack system to take physical vibrations and amplify them to produce audio or CV signals. There is also the possibility to experiment with real world feedback from your speakers back into your modular system!

The module has a normalized piezo installed into the front panel which you can bypass by plugging in your own wired piezos, telephone picks or anything else you want to amplify to modular levels.

This module has a high gain which makes it easy to overdrive, clip and distort a signal. The module has a LED behind the transparent panel making it possible to monitor signal levels.

Many thanks to Tom Whitwell of Music thing modular and Emille Gillet of MI for their inspiration and for sharing their knowledge .

Lovingly hand soldered and built at Beepboop Electronics Workshop.

Includes power ribbon, mounting screws and 1 year Warranty

https://beepboopelectronics.co.uk/product/2hp-kontact/
