10 HP
64 mm deep
Current Draw
23 mA +12V
12 mA -12V
12 mA 5V
$125 Price in €

This Module is currently available.

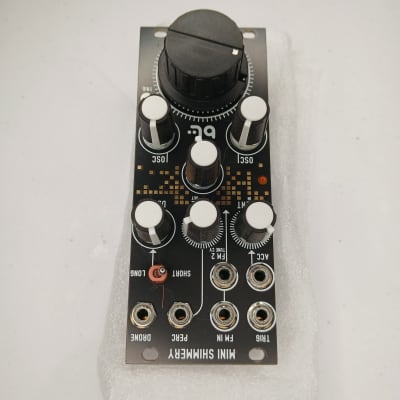

Percussive Metallic Generator

Model: Mini Shimmery Module MK2
Percussive Metallic Generator
Depth: 2.5 inches
Width: 10hp
Current: TBA
Colors: Matt Black

What does this do?
There are 3 square wave oscillators that ring mod each other twice to produce 'shimmery' sounding tones or drones. The internal sound does not stop. When you patch from the 'drone' jack it is a constant sound. You use the A, B, and C knobs to tune each individual oscillator. Then you use the 'Tune' Knob to adjust all of the oscillators when you find that perfect sound. There is a TR influenced circuit that uses the abrupt dirty transistor vca to produce hi-hats or metallic percussion. I added the essential accent control to vary the amplitude. You need a gate or trigger signal from an lfo, etc, to activate the TR VCA portion of the module.

Otherwise if you want clean hi-fi sounding percussion from this unit, you patch from the 'Drone' jack to your hi quality ssm2164, or cool audio v2164 vca.
