Dimensions
14 HP
26 mm deep
Current Draw
120 mA +12V
108 mA -12V
? mA 5V
Price
$176 Price in €

This Module is currently available.

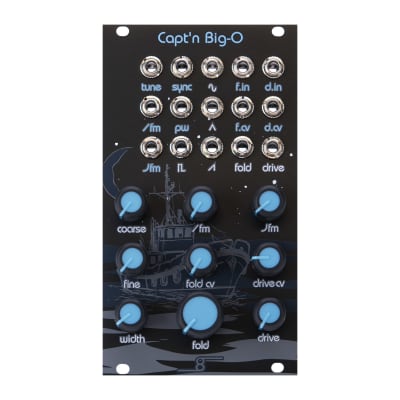

analog VCO with waveshaping

Width = 14hp

Depth = 26mm

100% analog, original design (not an oscillator on a chip)

Waveforms - sine, triangle, saw, and square

Wave folder/waveshaper - routed by default to sine but patchable to any waveform or external source

Drive circuit - essentially a 75x overdriven VCA (5V output)

Linear and exponential frequency modulation (FM)

Hard sync

Pulsewidth modulation

120mA power draw when running +12V rail

108mA power draw when running -12V rail

Frequency range of oscillator: full range - LFO through audible spectrum

Input voltage range of oscillator = -10V to +10V

https://www.cre8audio.com/captnbigo
