Dimensions
12 HP
26 mm deep
Current Draw
33 mA +12V
36 mA -12V
22 mA 5V
Price
$117 Price in €

This Module is currently available.

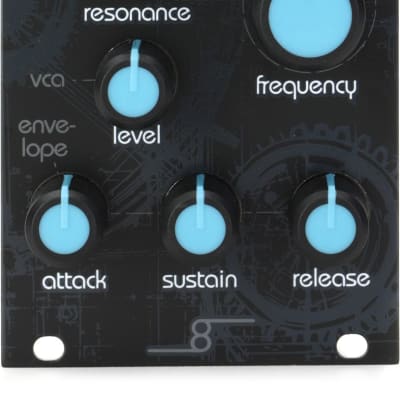

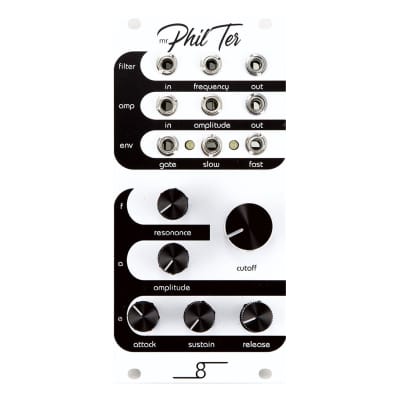

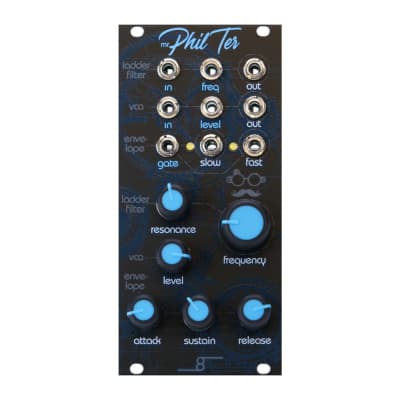

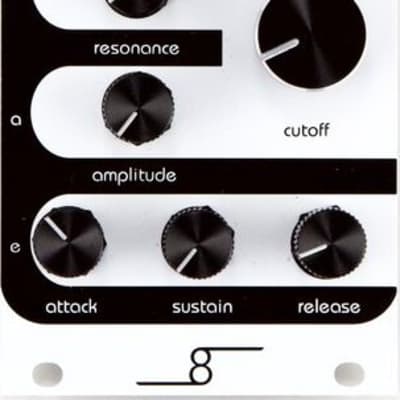

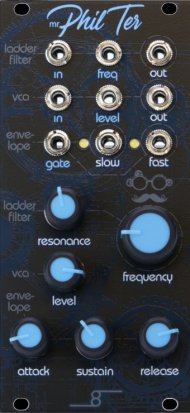

envelope generator, VCA, and a filter

Width = 12hp

Depth = 26mm

Envelope facts

Voltage range: 0-10V

Gate trigger threshold voltage: +5V

Attack, Release, and Decay times 0-10s (slow). 0-5s (fast)

Easter egg mode - quantize itself to 7bit for a steppy sample & hold effect

VCA facts - It’s a VCA, not YMCA or YWCA, but made with love. Sound or voltage goes in, and it will come out, or not. Control it with voltage or not. You can never have too many VCA’s, and this a good one.

Filter facts - Classic low-pass transistor ladder filter design, also will self-oscillate when resonance is cranked, creating a super clean trackable sine wave

33mA power draw when running +12V rail

22mA power draw when running +5V rail

36mA power draw when running -12V

https://www.cre8audio.com/mrphilter


Ø 4.50 (8 Votes) Average Rating
submitted Jul 13th 2021, 11:09 by curi | last Change Jul 13th 2021, 14:20 by KelvinD

4 Users are observing this
