10 HP
35 mm deep
Current Draw
92 mA +12V
43 mA -12V
? mA 5V
$99 Price in €

This Module is currently available.

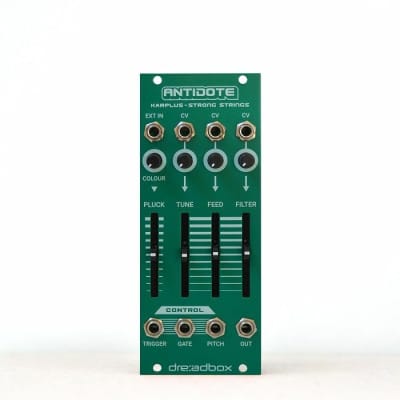

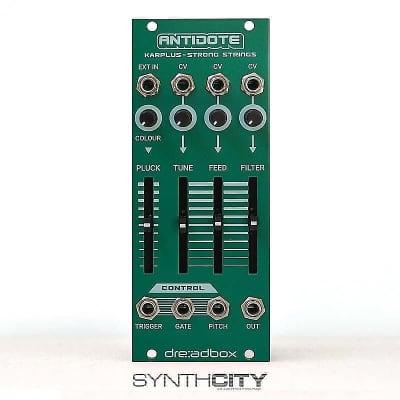

Karplus-Strong Strings

  • Full Karplus-Strong Synthesis Voice
  • Analog circuit based on a 512 stages BBD chip
  • On board Noise Generator with a variable decay (pluck)
  • Two Analog Low Pass Filters (one in the input and one in the output)
  • Output Filter can be used as a Low Pass Gate
  • Precision tracking over 5 octaves (from C0 up to B4)
  • Can process external audio signals so that can be used as: Resonator, Flanger (requires external LFO), Chorus (requires external LFO)
  • Frequency/delay time range: C0 @16,35hZ (61ms) up to B4 @493,9hZ (2,1ms)
