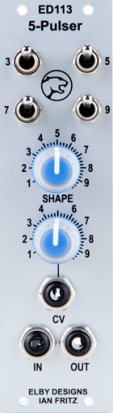

Waveshaper

The "5Pulser" waveshaper produces a train of pulses whose number (and widths) are varied with a control voltage. At the lowest control voltage a single square wave is put out, whereas at the highest voltage a train of 5 pulses spanning less that half of the total wave period is produced.

www.elby-designs.com/webtek/panther/panther.htm

  • 10 mA +12V
  • 10 mA -12V
  • ? mA 5V
  • 70 mm deep
  • Ø 3.80 (5 Votes) Average Rating

Available as an assembled Module and as a DIY project.

This Module is currently available.

$132 submitted Jan 17th 2013, 18:48 by wiggler1217 | last Change Feb 14th, 03:30 by Lugia
