Dimensions
4 HP
26 mm deep
Current Draw
60 mA +12V
14 mA -12V
? mA 5V
Price
$189 Price in €

This Module is currently available.

Specs are approved by the manufacturer

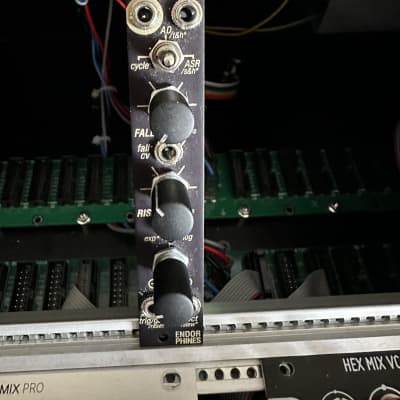

ULTRA SLIM ENVELOPE GENERATOR WITH LOOPING, ASR AND AD MODES

  • CV control over fall (decay / release)
  • Continuously variable shape over both slopes without stretching the slope’s duration in time.
  • Low aliasing CV generation, 224 kHz sample rate.
  • 1 v/oct input, bipolar and unipolar outputs, end of cycle output.
  • Audio rate oscillation in cycle mode allows you to utilize it as an oscillator.
  • Polarizer knob with additional VCA input scales the envelope and inverts it when CV goes to negative voltages, allowing for compact sidechain envelope solution without the need for external mixers / inverts / offset generators.
  • Slew limiter, S&H, T&H processing for external CV sources

https://www.endorphin.es/modules/p/airstreamer-4


Ø 5.00 (1 Votes) Average Rating
submitted May 3rd 2022, 13:55 by Endorphines | last Change May 12th 2022, 05:22 by Endorphines
