14 HP
45 mm deep
Current Draw
97 mA +12V
33 mA -12V
0 mA 5V
$202 Price in €

Module is available as a DIY project only.

This Module is currently available.

Specs are approved by the manufacturer

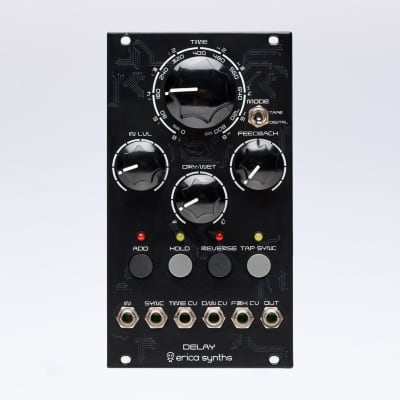

Hi-Fi delay with Sync, Hold, Add and Reverse functions

Erica Synths DIY Delay is hi-fi delay module with unique functionality typically found on advanced factory-produced units. We developed a custom DSP MCU board (comes pre-soldered and pre-programmed) and delay algorithms for syncable up to 800ms delays. Selectable Tape and Digital delay, BPM Sync, Tap Sync makes the module ideal for nuanced sound design. Furthermore Hold (freezes the sound up to 800ms), Add (adds several layers of sound on top) and Reverse (reverses sound in the hold buffer) functions allow to create crazy sonic artefacts.
Tape Delay and Digital Delay algorithms
Up to 800ms delay time
Syncable (clock and tap) delay time
Delay time divisions and multiplications
Freeze, Add and Reverse
Manually and CV controlled delay time, feedback and dry/wet mix

Available on August 6, 2018


Ø 4.20 (5 Votes) Average Rating
submitted Jul 23rd 2018, 11:01 by EricaSynths | last Change Aug 14th 2018, 08:49 by EricaSynths
