14 HP
25 mm deep
Current Draw
160 mA +12V
10 mA -12V
? mA 5V
$299 Price in €

This Module is currently available.

Specs are approved by the manufacturer

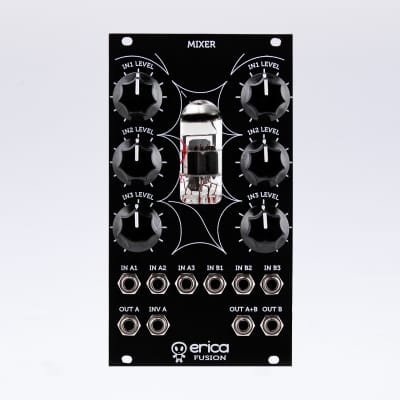

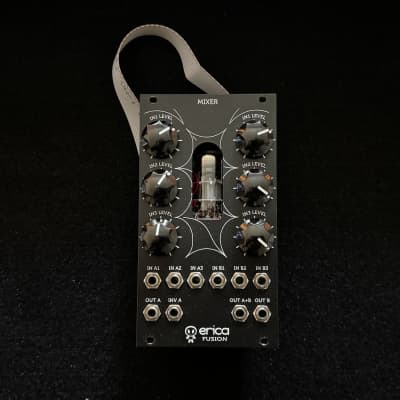

Fusion Mixer v3 (14HP)

Two independent 3-input vacuum tube mixers

Erica Fusion dual Mixer module is designed to mix and overdrive audio signals on the vacuum tube.

Use Fusion Mixer as two independent 3-input mixers (also for stereo signal mixing) or 6-input mixer. Special feature of the Fusion Mixer – great tube overdrive effects when level knobs are set to 3 o’clock and above. When used with drum machines, it even emulates sidechain compressors. When used to mix signasl from VCOs Fusion Mixer works as waveshaper, especially, if pulse width modulated pulse signals is used in one of inputs

*6 audio inputs
*Two independent 3-input mixer
*Sum of all 6-inputs
*Soft tube overdrive
