14 HP
40 mm deep
Current Draw
48 mA +12V
69 mA -12V
0 mA 5V
$259 Price in €

This Module is currently available.

Specs are approved by the manufacturer

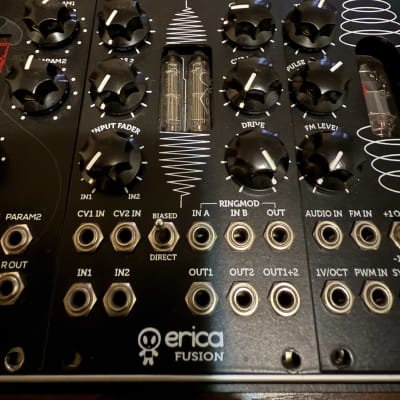

Fusion VCA-Waveshaper-Ringmodulator

Unconventional VCA/Waveshaper/Ringmodulator

The Fusion VCA –Waveshaper - Ringmodulator is a complex modulation source - it’s not a regular VCA; it can operate as one, but most of the power of the module is in advanced modulations – with two CVs applied simultaneously to different stages of the VCA, audio rate modulations, using ringmodulator as a waveshaper – your imagination is a limit!
Full analogue design
Vacuum tube based VCA – two miniature pentodes for better gain reduction
Two unconventional CV controls – CVs are not mixed, but they control different grid voltages of the tubes
Manual VCA bias control
Manual overdrive
Input corossfader
Built-in ringmodulator
Direct switch for conventional VCA mode
Low power consumption due to miniature vacuum tubes
