Dimensions
24 HP
36 mm deep

Module is a 1U tile in Intellijel format

Current Draw
39 mA +12V
28 mA -12V
0 mA 5V
Price
$119 Price in €

This Module is discontinued.

Dual Balanced Line Audio Input and Balanced Line Audio Output

This module allows you to interface your Eurorack modular system to the pro balanced line level world (+4 dBu). You can send and return to rack mount/desktop FX units, patch to external line-level instruments like synths and drum machines, interface to a DAW, and much more.

Features:

2 x Balanced TRS 1/4″ to Eurorack modular level input paths
2 x Eurorack modular level signals to Balanced TRS 1/4″ output paths
4 x two-stage LED VU meter to monitor all inputs and outputs simultaneously
Uses high quality THATCorp balanced line drivers and receiver ICs.
Input path has up to 20 dB of gain which allows you to patch in low level consumer level signals and boost them. 0 dB = 10 Vpp (nominal Eurorack level)
Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain.

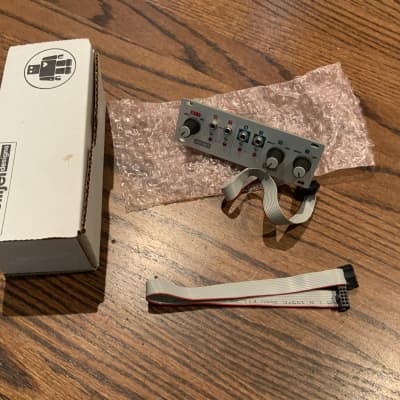

This module connects to the Audio I/O JACKS module via ribbon cable. The same ribbon cable can be used to connect to the rear-mounted audio jacks of the 7U performance cases.

https://intellijel.com/eurorack-modules/audio-io-1u/
