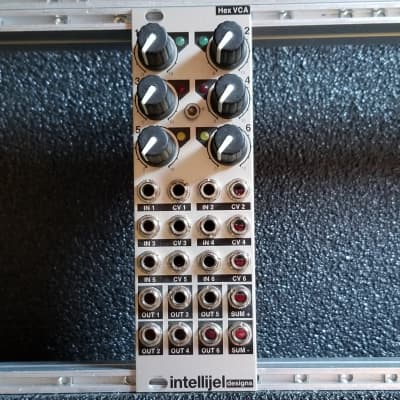

Six quality VCAs + summer

  • Used very high quality, low noise and super fast THAT Corp. VCA chips (exponential response).
  • LEDs for monitoring the CV control on each channel (also color coded to match the channel order of the mutagen).
  • High dynamic range: -80dB to 0dB with 0..5V control signal.
  • 6 trim pots on rear of PCB in order to preset attenuation for the CV (change the dB/V attenuation ratio).
  • 6 offset knobs for manually adjusting the gain of each VCA. You can use this to offset the VCA so that you can use bipolar CV sources like LFO/VCO.
  • DC coupled inputs accept CV or audio.
  • Sum and Inverted sum outputs: preset with -6dB attenuation in order to give more headroom for overall mix. each discrete output is normalled to the sum bus, patching into a discrete output will remove that output from the mix.
  • Special 12 pin header on the PCB allows the 6 outputs to be normalled to the six inputs of the Intellijel Mutagen/Mutamix via a ribbon cable.

https://intellijel.com/eurorack-modules/hexvca/

  • 54 mA +12V
  • 52 mA -12V
  • ? mA 5V
  • 35 mm deep
