Dimensions
14 HP
38 mm deep

Module is a 1U tile in Intellijel format

Current Draw
19 mA +12V
16 mA -12V
? mA 5V
Price
$149 Price in €

This Module is currently available.

Specs are approved by the manufacturer

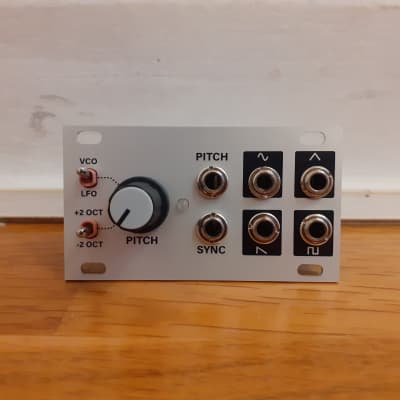

Syncable, Multi-Waveform Analog Oscillator & LFO

Mighty oscillations, mini size.
An analog, triangle core oscillator and LFO with pure waveforms and precise tracking in a compact package. Perfect as a utility modulation source but equally capable to be used as a primary sound source. Patch it up and let it rip!

Features
* Four simultaneous pure waveforms: Sine, Triangle, Square and Sawtooth
* Pitch input for 1V/Oct tracking and FM
* SYNC input for Hard Sync. This input has a comparator so that you can use a variety of waveforms as triggers.
* Switch to select VCO (audio) or LFO range of operation
* Three position Octave switch to jump pitch up or down by two octaves
* PITCH knob has three octave range in VCO mode (extended to seven with the octave switch) and seven octave range in LFO mode (extended to 11 with the octave switch).
* Bicolor led indicates the state of the triangle core rate

https://intellijel.com/shop/eurorack/1u/vco-1u/
