Dual Window Comparator

The window comparator is a very useful circuit building block that is common in general electronics, but rarely found in modular synths. While a regular comparator activates when the input signal voltage is higher than a threshold level, a window comparator checks if the voltage is between two levels (these form the 'window').

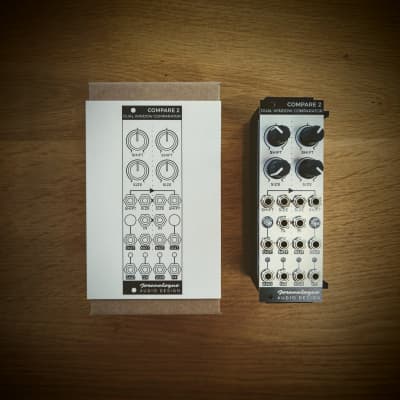

Compare 2 combines two such comparators and a logic section in 8 HP. The result is an advanced tool for extracting gates and pulses from analogue signals in Eurorack synths.

The detection windows are defined by the shift and size parameters, which can be varied using the knobs and control voltage (CV) inputs. Complementary gate outputs are available, with big three-colour LEDs showing each comparator’s status in real-time.

All inputs are normalised from the left section to the right, but the two comparators can also be used completely independently. On the bottom, the gates from both comparators are combined in various ways by the logic section, which also features LEDs.

You'll find a use for this truly multi-functional module in practically any patch, processing either CV or audio: complex rhythm generator, dual pulse width modulator, frequency multiplier/divider with PWM, digital ‘ring modulator’ with PWM, dynamic depth VCO synchronizer, voltage controlled swing, logic function array with adjustable thresholds… and many more applications waiting to be discovered!

Muff Wiggler forum thread: https://www.muffwiggler.com/forum/viewtopic.php?t=190531






https://joranalogue.com/compare-2

  • 20 mA +12V
  • 15 mA -12V
  • 0 mA 5V
  • 30 mm deep

This Module is currently available.

$180
8 HP Comparator
submitted Oct 25th 2017, 10:11 by joranalogue | last Change Jun 13th, 18:51 by joranalogue
Specs are approved by the manufacturer

11 Users are observing this

Buy Online
