20 HP
30 mm deep
Current Draw
80 mA +12V
10 mA -12V
? mA 5V
$399 Price in €

This Module is currently available.

Specs are approved by the manufacturer

CV and MIDI Pattern Generator

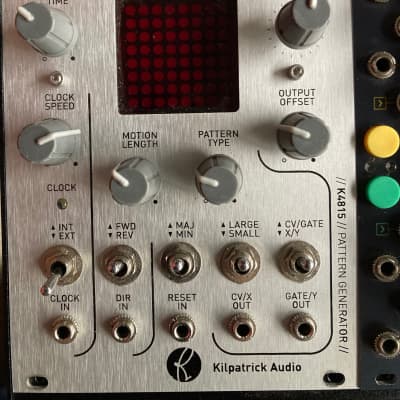

As its premier offering in the modular synthesizer world, the K4815 Pattern Generator by Kilpatrick Audio packs incredible power into a small 20HP Eurorack module that offers virtually unlimited creative potential for modular players. The K4815 can produce notes and varying control voltages for a wide range of musical applications. Its unique approach to music creation is sure to have you finding new melodies and rhythms never heard before. Unlike a step sequencer, where the player picks each note in a sequence, the K4815 creates sequences by combining a scale, a visual pattern (as shown on the display) and a sequence playback motion to determine the rhythms and notes that are actually played. Other parameters can adjust the note and sequence length, as well as the transposition, direction of playback, and so on.

The K4815 is fully analog and MIDI compatible. The MIDI interface is available on an internal connector and is compatible with the K1600 MIDI Converter from Kilpatrick Audio. You can even build your own MIDI interface. See: AN-1 Simple MIDI Interface for a free design. The analog connections support three inputs for connecting analog clock, and analog control of the playback direction and pattern playback reset. The CV and GATE outputs are high performance analog outputs for controlling VCOs and envelope generators. High quality 12-bit DACs ensure accurate tuning, and jumper selectable voltage offset and trimming are provided internally to allow integration with most modular equipment.

But notes are not the only thing that can be produced with the K4815. In the alternate X/Y mode, varying voltages are produced on both the CV/X OUT and GATE/Y OUT. By using the X/Y mode, the playback position creates varying voltages and MIDI control changes which can be used as a source of modulation.

The essence of any sequencer is the clock. The K4815 has a high stability internal clock which can generate a wide range of tempos. The unit also supports analog (5V) clock on the CLOCK IN connector or MIDI clock. When the internal or analog clock is used, MIDI signals are generated automatically, making the system a useful MIDI clock generator or converter.
