Dimensions
8 HP
Current Draw
20 mA +12V
10 mA -12V
0 mA 5V
Price
$199 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Multi-mode Filter

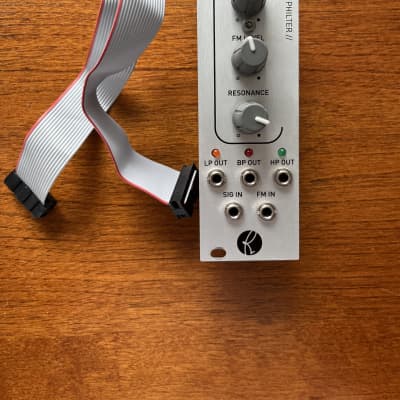

The incredible success of the PHENOL Patchable Analog Synthesizer has created a buzz amongst Eurorack users. After being asked many times whether we would release any parts of PHENOL for Eurorack, we finally created the K6501 PHILTER, inspired by the amazing filters on PHENOL! Offering the fat punchy sound and dirty overdrive when the resonance setting is high, the PHILTER is redesigned to work with Eurorack systems. It offers low-pass, band-pass and high-pass outputs simultaneously. Each output contains a signal indicator showing when that output is active. PHILTER has the same tone and range of control as the PHENOL filters in a compact package.

Although it's only 8HP and looks quite tame, don't be fooled! The sound and tone colour is completely massive! PHILTER will take even the tamest sounding oscillators and make them completely explode. Try it with drum loops and other sounds, or just run your whole mix through a pair of them!

Features and Specs:

  • Eurorack (3U) form factor - 8HP width
  • Filter circuit inspired by PHENOL and true to the sound and range of control
  • Simultaneous low-pass, band-pass and high-pass outputs
  • Unique two-pole design with special resonance limiter for huge peaks without oscillation
  • Control over cutoff, resonance and FM level (voltage control of frequency)
  • All inputs and outputs are tolerant of +/-12V
  • All outputs drive 10Vp-p with 1K output impedance
  • Requires +12V (20mA), -12V (10mA) - 16 pin Doepfer-style power cable used - approx. 0.4W total power consumption
  • Designed and made in Canada using high quality parts.
  • Warranty: 1 year

http://www.kilpatrickaudio.com/?p=K6501
