Random clocked trigs/gates w. disable

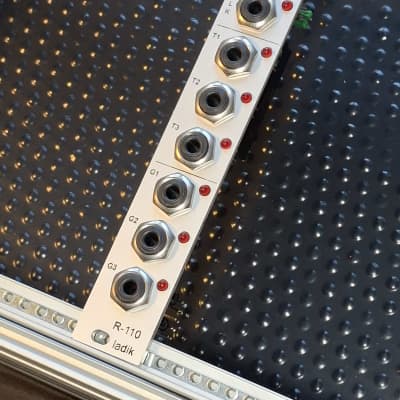

From top:
Disable input jack + LED (if active, gate outputs stays in its current state or are all switched off – selectable by internal jumper)
Clock input jack + LED
Trig 1/2/3 output jacks and LEDs (probability = 3 so in average every third input clock makes output trigger)
Gate 1/2/3 output jacks and LEDs (probability = 3 so in average every third clock makes gate on and then every third clock makes gate off)

Configurable parameters (by internal jumpers, just one of first five should be set):
a) jumper 1: fixed 1ms trig outputs
b) jumper 2: fixed 200ms trig outputs
c) jumper 3: variable trigger outputs length – quarter of input gate length
d) jumper 4: variable trigger outputs length – half of input gate length
e) jumper 5: variable trigger outputs length – equal to input gate length

f) independent „disable“ jumper (behind T1 output jack): gate outputs stays in its current state (jumper not set ) or are all switched off (jumper set) at active „disable“ input signal

Width: 4TE/ 4HP/ 20mm.
Depth: 40mm /1,6″ max.
Current: 15mA max.
Power cable included.
