Dimensions
4 HP
Current Draw
15 mA +12V
15 mA -12V
0 mA 5V
Price
$92 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

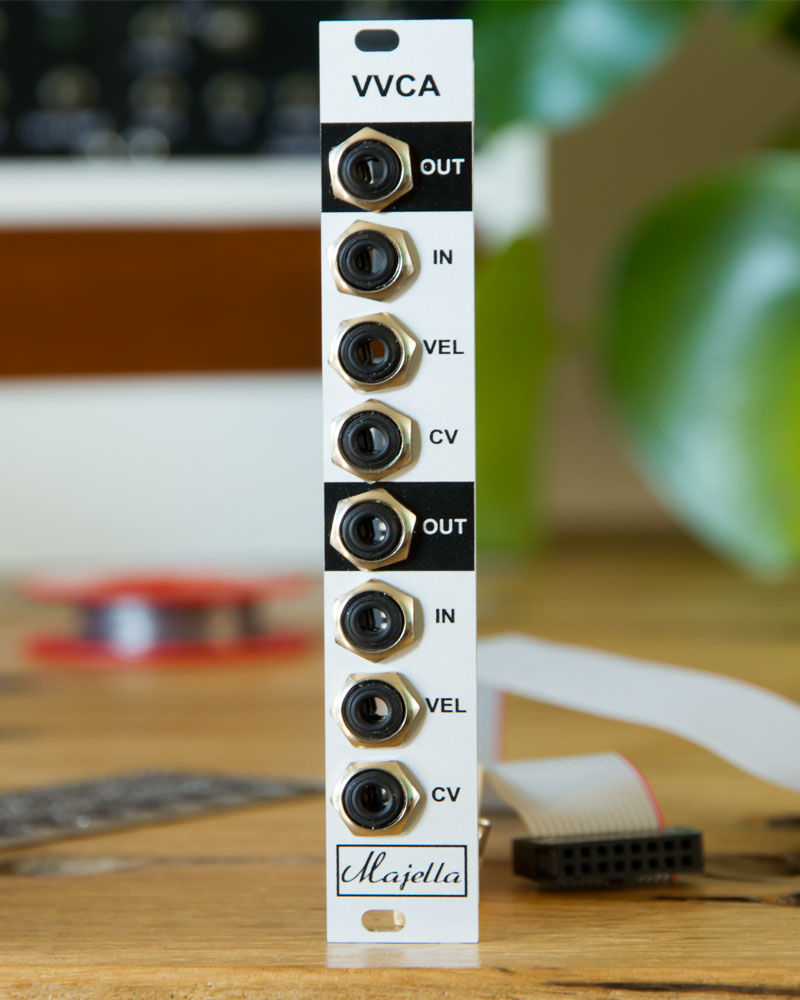

VVCA: Velocity VCA

VCA

The VVCA is a fully analog dual linear VCA which can be used for audio and CV signals.

The VVCA is designed to add velocity control over the amplitude of your modular synthesizer, in a very straightforward way.
Applying velocity voltages adds more expression while playing keys or add accents/dynamics using a sequencer etc.
Of course the VVCA can be used in many other creative ways and behaves like a normal VCA when the velocity input is not connected.
There are two VCA's with velocity control in this 4HP module!

The VVCA adds a tiny amount of characterful soft-clipping.

Specification:
• 4HP Aluminum Panel
• DC coupled input; can amplify both audio and CV signals
• CV Input: 0-8V
• Velocity Input: 0-5V
• Outputs at same level as Input when both the CV Input and Velocity Input are at max
• This module uses the 5V rail (16 pin eurorack connector)!

Demo:

Build:

https://majella-audio.com/product/vvca/
