26 HP
Current Draw
200 mA +12V
? mA -12V
? mA 5V
$395 Price in €

This Module is currently available.

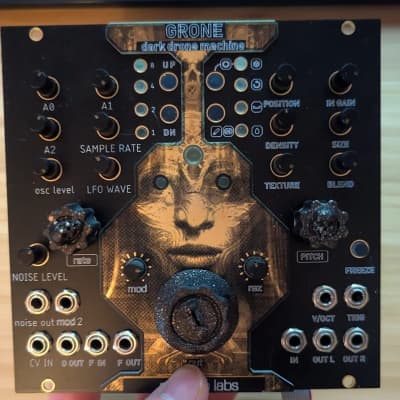

Dark Drone Generator

Maneco Labs Grone eurorack version of Dark drones.
Generator Blocks description:
Drone VCO​​:Generates sound based on equations converted to analog signals , there are sixteen equations selected by ​Up​ and ​Down​ switches. Four leds indicate equation number in binary mode. Three Pots modify numbers used by the equation, ​A0​ ,​ A1​ and ​A2​ , fourth pot ​Sample Rate​ controls pitch and speed of the oscillation. There’s an ​Output Level​ pot for the oscillator and a dedicated jack for patching the Oscillator sound to external modules.
NOISE GENERATOR​​: White noise with ​noise level​ pot and noise output jack.
VCF​ : MS20 resonant low pass filter , with ​CUT​ frequency pot control , ​RESONANCE​ ,
MODULATION 1 ​ amount pot , input and output jacks and second cv input for cut off ,labeled MOD2
LFO​​: Low frequency oscillator routed to MOD1 from VCF , ​RATE​ and ​WAVEFORM​ shape pots.
Waveforms are : ramp up, ramp down, square, triangle, sine , sweep, random levels, random slopes.
CLOUDS​ : based on MUTABLE INSTRUMENTS eurorack module , with parasites firmware ,same controls from MI : ​Input gain, position, size, density, pitch, texture, blend​ , switches for ​blend parameter​ and ​load/save​, ​freeze​ control with indicator led ,
same display as MI original,Dedicated audio input jack (mono) stereo output and control inputs for V/OCT and TRIGGER.

Drone, Noise, Filter, with LFO incl. a Clouds
