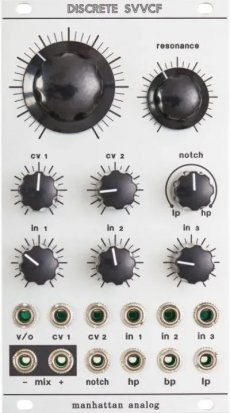

Discrete SVF + Moog CP3 Mixer

From Muffs:
"It started life as the SVF design (based on the J. Haible discrete 2040 gain cell) which Scott Stites posted over at electro-music in April. I'd been wanting to work with another filter for a while and this one looked interesting, so I started playing with it. I lopped off the audio input section and grafted on the CP3 mixer (moar transistors!) and that's what you're hearing in this rather short clip. It's definitely interesting! A very thick, rich-sounding filter with a lot of different personalities depending on how hard you drive the inputs. "



  • 30 mA +12V
  • 30 mA -12V
  • 0 mA 5V
  • 45 mm deep
  • Ø 4.57 (28 Votes) Average Rating

Available as an assembled Module and as a DIY project.

This Module is currently available.

14 HP FilterMixer
submitted Jul 27th 2013, 19:07 by Lovebot | last Change Dec 5th 2017, 19:39 by FG-Modular

Date Region Description Price Seller
USAThe Manhattan Analog Discrete SVVCF in excellent condition.  Discrete SVVCF ...$219.00 View
USAState variable filter with built in CP3 mixer.From MA: "It started life as th...$210.00 View
USAThe overall condition of this *Manhattan Analog Discrete SVVCF* is *like new*...$180.00cold_fashioned View
