Dimensions
6 HP
33 mm deep
Current Draw
70 mA +12V
50 mA -12V
0 mA 5V
Price
$209 Price in €

This Module is currently available.

Specs are approved by the manufacturer

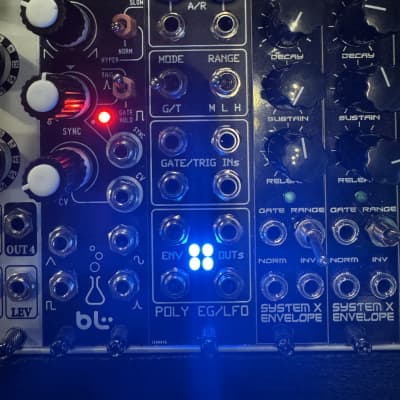

Polyphonic Envelope Generator

This 6HP Eurorack module is a fully analog quad envelope generator with a separate gate/trigger input for each of the four EGs. With no gate/trigger connected, each EG will cycle as an LFO. There is a toggle switch to change between gate and trigger mode. The LFOs cycle in gate mode, but will stop when set to trigger mode. The attack and release (rise and fall) times can be controlled with the knobs or CV inputs. There is a toggle switch to change between three ranges (Medium/Low/High). These wide ranges allow you to generate anything from super percussive slaps, to long drawn-out ambient shapes. The attack and release affect the four EGs equally, making this module perfect for your polyphonic setup!

Low Range:
Attack (Rise) 300us - 400ms
Release (Fall) 300us - 400ms
LFO 1666Hz - 1.25Hz.

Medium Range:
Attack (Rise) 1.7ms - 3s
Release (Fall) 1.7ms - 3s
LFO 294Hz - 0.166Hz.

High Range:
Attack (Rise) 17ms - 30s
Release (Fall) 17ms - 30s
LFO 29.4Hz - 0.0166Hz.

  • Timing is approximate, and can vary +/-10%.

Check out these video demos by Jee!
