Dimensions
33 HP
30 mm deep
Current Draw
20 mA +12V
20 mA -12V
0 mA 5V
Price

Available as an assembled Module and as a DIY project.

This Module is a prototype or in a concept phase.

Sound Lab Mini-Synth

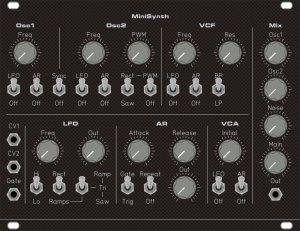

MFOS Sound Lab Mini-Synth in Eurorack format

The classic Sound Lab Mini-Synth by Ray Wilson from Music From Outer Space (http://musicfromouterspace.com/), redesigned to fit in a Euro System, 33HP wide.

This version uses Surface Mount Devices, 1206 size chips. There's no more wiring: everything fits on the PCB.

See more informations and build documentation here: http://www.davidhaillant.com/category/electronic-projects/mfos-soundlab-mini-synth/

Last updates:
- Version 1.3 adds a Hi Freq correction trimmer. 5 octaves in tune on VCO1. VCO2 still has only 2 octaves in tune.
- Version 1.4 includes some important improvements. The Sync function has been upgraded as per Ray's recomendations. The VCO2 now tracks 5 octaves.

The final product should be available soon on SynthCube.
Prototype PCBs can be purchased until the stocks last.

http://www.davidhaillant.com/category/electronic-projects/mfos-soundlab-mini-synth/
