Dimensions
3 HP
32 mm deep
Current Draw
25 mA +12V
25 mA -12V
0 mA 5V
Price
$50 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Minimal Stereo Panning Mixer (Built by Siam Modular / Takaab) (3HP)

Part of the Takaab range of modules by Siam Modular.

A minimal but very useful module for spacing out your sounds in the stereo field, and only 3HP.

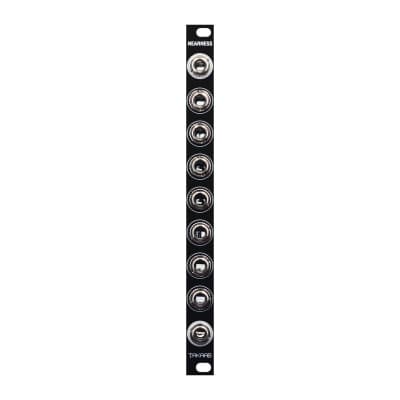

The left and right outputs of Nearness are at the top and bottom. The 7 jacks between these are all mono inputs. Each input has a different pan ratio depending on how close to an output it is, meaning the centre input is panned 50:50 to each output, other inputs are panned progressively harder to the output they are closer to, until the inputs adjacent to outputs are panned almost completely to that output.

The level for each output can be switched with a jumper between 1:1 amplification (for use inside the eurorack system) or -6db line level (in case you use Nearness as the output module of your system).

**This module was designed by Sarnesjo and released under Creative Commons licence. Constructed by Siam Modular (Takaab). If you prefer to print your own boards and build one yourself, all files are available at: https://github.com/sarnesjo/nearness

https://www.siammodular.com/nearness-minimal-panning-mixer-eurorack-synthesizer-module
