Dimensions
6 HP
Current Draw
44 mA +12V
16 mA -12V
? mA 5V
Price
$179 Price in €

This Module is currently available.

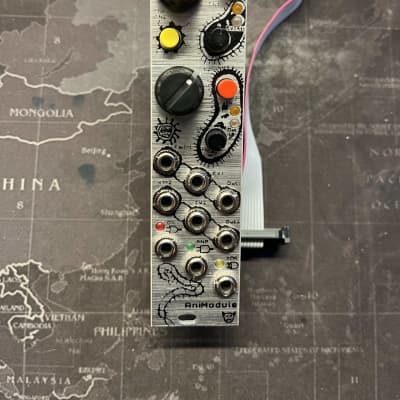

Syncopated Timing Disruptor

We're so proud of our STD, we'd like to share it with you.
It's So Great, You're going to want to share it with your Friends and Family.
It's absolutely contagious.

*2 Independent Tap Tempo Clock Channels
Prefer to use a Gate? No Prob! Just Patch in to the Gate Input.

Use the Div/Mult/Offset Pot to Multiply or Divide your Clock Time up to *8 - /8

Or patch In to the CV Input to Modulate the Mathematical Madness!
When CV is being input the Div/Mult/Offset Pot behaves as an Offset.

CV Input wants 0V to +5V, but whatever you got, Between the Offset, and the Front Panel CV Attenuators, it's easy to dial in your desired range of "On the Fly" Mathematical Clock Time Modulations.

Want to sync the 2nd channel to the first?
Latch the Ch1 - Ch2 switch and the Output of Channel 1 is normalled to the jack Switch of Channel 2.
You can still control the Multiplications / Divisions of each channel Independently!

If that wasn't enough to get you poppin' penicillin prophylactically there's more!

The bottom row of jacks constantly output OR, AND, and XOR Logic Combinations of the 2 channels combined!

Want to use something funky (like a Sine Wave / Envelope / Random Voltage Generator) to set the rhythm? The Input is a Buffered Comparator set to trigger at any signal above +1.2V

Perfectly happy up in to the Mid- Audio range
