Difference rectifier circuit
Those that build a lot of NLC modules will know this is one of my favorite circuits. The diff-rect has appeared on the Neuron, 1050 mix/sequencer, triple Sloth, GENiE and 8 of them make up the Let's Splosh.
It is great for mixing audio and/or CV signals to get all kinds of unexpected and interesting results. This page from 2012 on my old Pinky site has some more details.

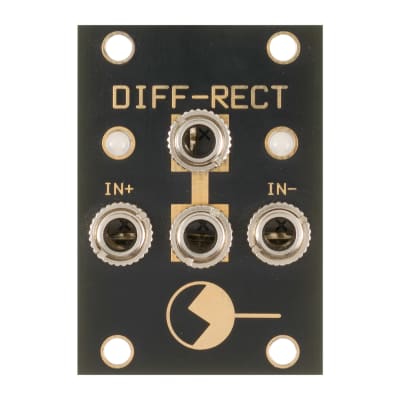

The panels are available in Pulp and Intellijel formats and in white/gold or black/gold, please specify when ordering.
Please note, the PCBs only have eurorack 10 pin power connectors, not the Pulp Logic 3 pin type.
PCB & panel set = USD 10
assembled = USD 55
Available as an assembled Module and as a DIY project.
This Module is currently available.
Module is a 1U tile.$55 Price in € submitted Aug 20th 2019, 15:05 by motorhead412 | last Change Aug 20th 2019, 15:24 by motorhead412
