Dimensions
12 HP
38 mm deep
Current Draw
100 mA +12V
10 mA -12V
0 mA 5V
Price
$280 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

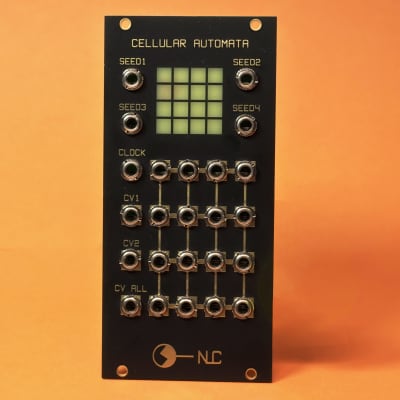

16 cell gate and pattern generator

This is a 16 cell gate and pattern generator using cellular automata rules 90 & 150. It will run thru a process driven by a clock signal and requires a signal on one of the seed inputs (anything crossing 1V) to start a new process or alter the current one. A process without seeds may run for hours or minutes, depending upon the start point and clock rate.

There are 3 CV outputs, two based on what is happening on each half of the circuit, one reflects the pattern created by the active cells. Each cell has a gate output.

The circuit uses CMOS chips and op amps, no microprocessors. It is a big build!

PCB set = USD 25
panel = USD 23
assembled = USD 280

Build Guide & BOM on the NLC wiki.

Other panel versions:
https://www.modulargrid.net/e/nonlinearcircuits-cellular-automata-black-panel
https://www.modulargrid.net/e/nonlinearcircuits-cellular-automata-white-panel

https://www.nonlinearcircuits.com/modules/cellular-automata


Ø 5.00 (2 Votes) Average Rating
submitted Jul 11th 2019, 03:15 by motorhead412 | last Change Oct 11th 2022, 01:10 by informationsource
