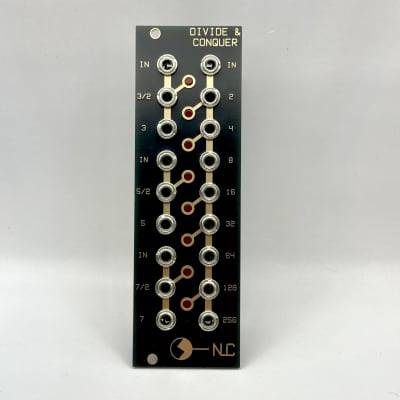

Clock divider module

This is a clock divider module containing 4 different dividers:

/2, /4, /8, /16, /32, /64, /128, /256
/1.5, /3
/2.5, /5
/3.5, /7

All sections will run off a signal patched into section 1.
The module can be patch-programmed to obtain other divisions. For example; patch output /2 into section 4 to get divide by 14 from the /7 output.
The circuit is CMOS based and contains no microprocessors.

This module is intended to be a companion module for the Bindubba Sequencer.
Yes, the first run of panels has an invisible '64'.

PCB set = USD 22
panel = USD 20
Assembled = USD 190

http://nonlinearcircuits.blogspot.com/2017/10/divide-conquer.html
