VCA and Mixer based on early Moog designs

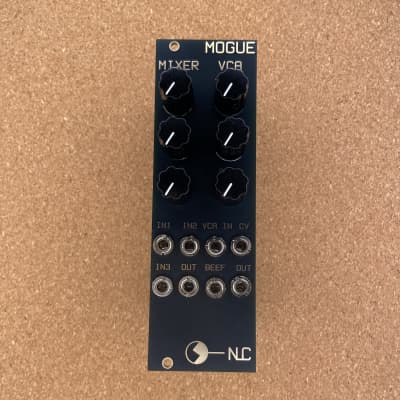

Mogue is a VCA and Mixer based on early Moog designs, with some mods to get them into ‘Eurorack standards’ (!). Both circuits can be over driven to get some wave-shaping action. The mixer can handle CV and audio but the VCA is audio only (tho feel free to place links instead of the capacitors to make it work for DC). Some users consider these 2 modules are an inherent part of the legendary Moog sound…maybe; I just wanted to use up all my LM394.

http://nonlinearcircuits.blogspot.com/2018/07/mogue-mixer-vca.html

  • ? mA +12V
  • ? mA -12V
  • ? mA 5V

Available as an assembled Module and as a DIY project.

This Module is currently available.

8 HP MixerVCA
submitted Aug 21st 2018, 11:51 by n0rd

2 Users are observing this
