Gate generator

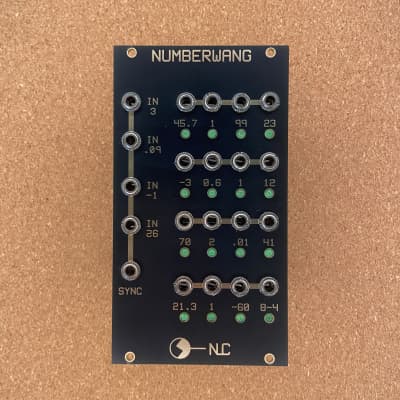

This module is basically a 4:16 decoder with sync and async modes. In use, patch for signals to the 4 inputs and generate an endless variety of gate patterns. If nothing is plugged into the sync input, then the circuit will change when one of the 4 inputs is changed, with sync it will only change when the signal on sync is high.

PCB US $20
panel US $25
assembled US $180

http://nonlinearcircuits.blogspot.com/2016/02/numberwang.html

  • ? mA +12V
  • ? mA -12V
  • ? mA 5V
  • Ø 3.00 (1 Votes) Average Rating

Available as an assembled Module and as a DIY project.

This Module is currently available.

$180 Price in €
14 HP Random
