Dimensions
8 HP
26 mm deep
Current Draw
68 mA +12V
24 mA -12V
0 mA 5V
Price
$250 Price in €

This Module is currently available.

Dual Boolean logic module with hard and programmable logic

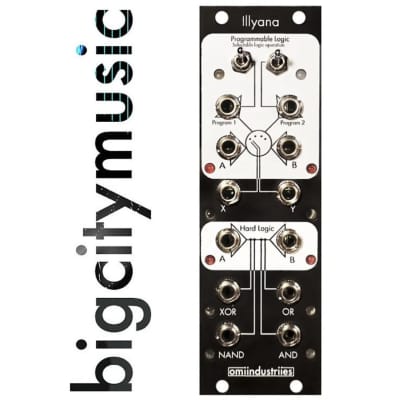

Illyana is a two channel Boolean logic module. The bottom channel has two inputs, A and B, and 4 simultaneous logic outputs, XOR, OR, NAND, & AND, this channel is labeled Hard Logic because the outputs are hardwired.

The top channel has the same A and B inputs as the bottom but which logic operation is present at the output can be programmed with the program switches and program gate inputs.
