Ornament and Crime / 8HP

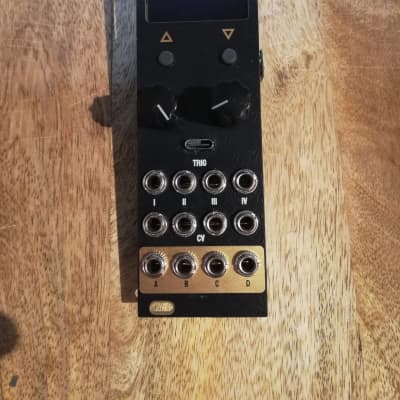

Ornament & Crime Polymorpher / Micro / 8HP

Ornament and Crime Polymorphic CV module in a micro / 8HP version. Hardware/Firmware is identical with the original O_C by mxmxmx.

The O&C is an extremely versatile module. Quadruple Quantiser, Chord Progression Generator, Quad LFO, Quad Envelope, Dual Channel Sequencer .... just to name a few. Originally planned as quantizing ASR (Analog Shift Register) there are currently 13 apps which can be changed without restart. More details can be found at the ornament-and-crime website.

Frontpanel 2mm aluminium, CNC milled, black silkprint.
Sifam "Intellijel style" knobs
128 x 64 pixel 1.3” OLED-Display, white.
Teensy 3.2 / 32-bit ARM Cortex M4.
4x precision CV outputs / 16-bitTrigger-to-quantised-output latency < 100 microseconds.
Firmware v1.3.5 by mxmxmx

https://rvrb.io/2018-micro-ornamen-pltju9

  • 85 mA +12V
  • 10 mA -12V
  • 0 mA 5V
  • 25 mm deep

This Module is currently available.

$252 Price in € submitted Sep 3rd 2018, 15:51 by TRINKO | last Change Jul 7th, 15:28 by TRINKO

7 Users are observing this
