Dimensions
8 HP
25 mm deep
Current Draw
35 mA +12V
35 mA -12V
0 mA 5V
Price
$196 Price in €

Module is available as a DIY project only.

This Module is currently available.

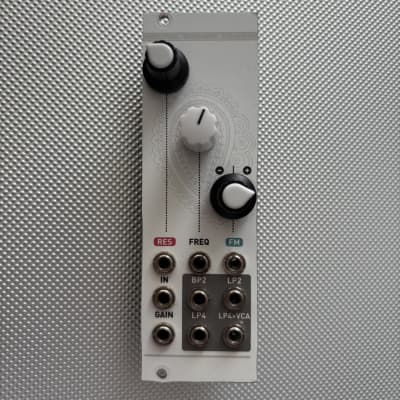

Liquid Filter DIY Module

Ripples delivers a classic, big-sounding analog four-pole filter in a small 8-HP package, continuing Mutable Instruments’ lineage of warm and tasty filters started by the Shruthi SMR4 mkII and 4-Pole Mission.

3 filter modes are available: 2-pole band-pass, 2-pole low-pass, and 4-pole low-pass.

Self-oscillation is available for all modes and produces a clean sine-wave on the LP4 output. Unlike many classic 4-pole designs, this filter does not suffer from “loudness drop” when resonance is increased. The resonance loudness compensation circuit brings a slight tone coloration reminiscent of the Roland SH/Jupiter filters, with a very round and “liquid” resonance.

The 4-pole low-pass output is additionally sent to a VCA. This makes Ripples a good final stage module for an inexpensive/space-constrained subtractive synthesis synth voice.

http://mutable-instruments.net


submitted Jul 27th 2018, 09:52 by reekol | last Change Nov 20th 2018, 13:50 by reekol
