Waveshaper / Wavemangler Expander Module for the Generator

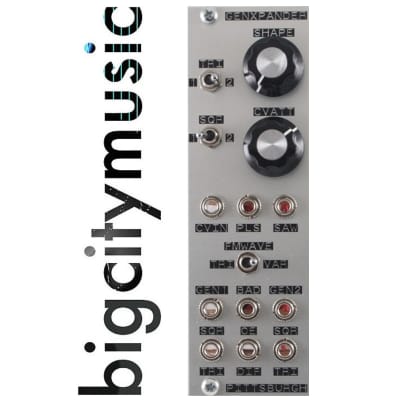

The GenXpander is an expander module for the Generator. It adds standard waveform outuputs, internal FM waveform selection, extensive waveshaping capabilities to the Generator module.
The GenXpander has 4 separate sections.
The waveshaper circuit uses a triangle wave square wave from or both of the oscillators on the Generator module to create a saw wave a pulse wave. Attenuated CV of the pulsewidth saw shape is available. A switch for the triangle wave a switch for the square wave determine which oscillator the seed waveforms are taken from.
Selecting the same oscillator for both triangle square will provide a clean saw wave. Selecting different oscillators for the triangle square waves will provide a interesting modulating, saw-triangle-square type waveform.
FM Wave Switch
Determins the waveform by oscillator 1 (GEN1) to internally modulate oscillator 2 (GEN2). The Generator ships with the internal FM set to the variable waveform. The switch allows the frequency modulation waveform to be changed to a triangle wave.
Standard Waveform Outputs
Separate triangle square wave outputs for both oscillator 1 (GEN1) oscillator 2 (GEN2)
An odd/even harmonic detector, frequency mixer & waveshaper. It inverts the polarity of the triangle waves based on the frequency relationship between oscillator 1 (GEN1) oscillator 2 (GEN2).
Regular polarity oscillator 1 triangle if the difference between oscillator 1 (GEN1) oscillator 2 (GEN2) is an even number. Inverted polarity oscillator 1 triangle if the differance between oscillator 1 (GEN1) oscillator 2 (GEN2) is an odd number.
Polarity of oscillator 2 triangle is changed at a frequency equal to the differance between oscillator 1 (GEN1) oscillator 2 (GEN2). If oscillator 1 (GEN1) oscillator 2 (GEN2) are the exact same frequency then the DIF output is the same as the oscillator 2 triangle output.
This Module is discontinued.$169 Price in € submitted Oct 6th 2012, 13:36 by solitud | last Change Mar 28th 2018, 01:16 by cliffemu
