Dimensions
4 HP
38 mm deep
Current Draw
60 mA +12V
17 mA -12V
0 mA 5V
Price
$190 Price in €

This Module is discontinued.

Specs are approved by the manufacturer

Random Voltage Source, Sample and Hold, Noise, and Random Gate Generator

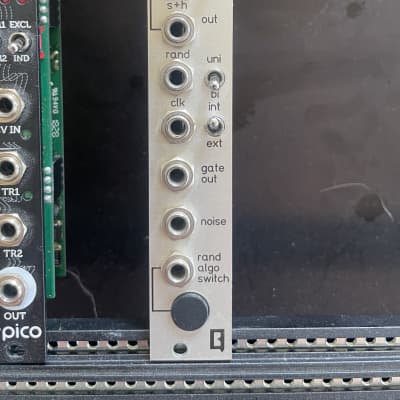

Nano Rand is a sample and hold, noise source, and random voltage generator in 4 HP. It takes inspiration from and improves upon the analog concept of a random voltage module; moving forward in leaps and bounds into the digital domain. At its­ core is an 8 bit microcontroller which allows for an extremely versatile, and more importantly, musical type of random.

  • 4 switchable random voltage algorithms

  • Can be internally or externally clocked

  • Random gate source that generates musical derivatives of incoming clock

  • Generates random frequency audio rate square waves allowing it to be both
    audio and control source

  • Random voltage can be unipolar or bipolar

http://www.qubitelectronix.com/modules/nano-rand
