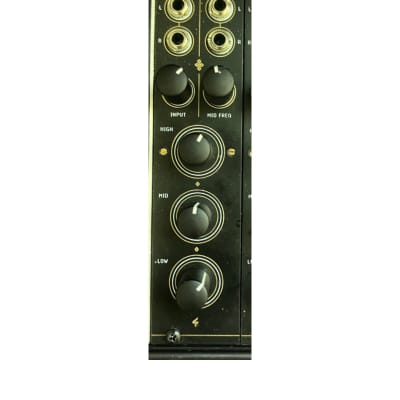

3-Band Stereo EQ with Mid Frequency Control

Stereo EQ is a classic 3-Band EQ with Frequency Range Control over the Mid Band.

The HIGH band can boost or reduce the signal by +/-8db at around 5khz to 20khz.
The MID band has a dedicated MID FREQ control that sets the frequency to be changed. It has a pretty narrow range that increases or decreases the singal by +/-5db from 500hz up until 2.2khz depending on the MID FREQ knob setting. The LOW band may change frequencies from 20hz to 300hz by +/-10db.

The signal volume can be set with the INPUT potentiometer.

STEREO EQ has a similar design like the STEREO SUM CHANNEL modules. If you want to have a more detailed EQ control over your mix STEREO EQ is a perfect addition to your STEREO SUM Mixer.

Details:
• Stereo EQ
• 3-Bands
• Input Volume Control
• Mid Band Frequency Control
• Wrong Polarity Protection
• Skiff friendly
• Perfect Addition to your STEREO SUM Mixer

The module consists of two boards:
• Front PCB Panel
• Main PCB

http://www.st-modular.com

  • 15 mA +12V
  • 11 mA -12V
  • 0 mA 5V
  • 27 mm deep

Module is available as a DIY project only.

This Module is a prototype or in a concept phase.

6 HP Equalizer
